Condenser Fan Motor 1/3HP 1075RPM 208-230V with Capacitor HVAC Replacement

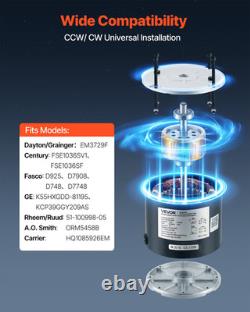

Condenser Fan Motor with Capacitor, 1/3HP 1075RPM 208-230V, Compatible with GE Genteq K55HXGDD-81195 5KCP39GGY209AS, Fasco D925 D7908, Dayton EM3729F, Century FSE1036SV1, Rheem Ruud 51-100998-05. OEM Standard Quality: 1/3HP 60HZ, AC208-230V, 1075RPM, 2.2A Rated Current, Single Phase. Models Compatibility: Compatible with GE Genteq (K55HXGDD-81195, 5KCP39GGY209AS), Fasco (D925, D7908, D748, D7748), Carrier (HQ1085926EM), Dayton Grainger (EM3729F), Century (FSE1036SV1, FSE1036SF), Rheem Ruud (51-100998-05), and A. Easy Installation: 48Y Frame, Shaft Length: 6.02 inch, Shaft Diameter: 0.5 inch.

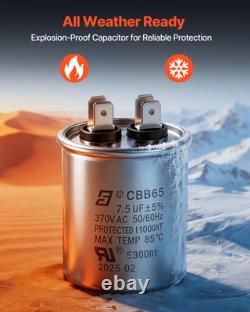

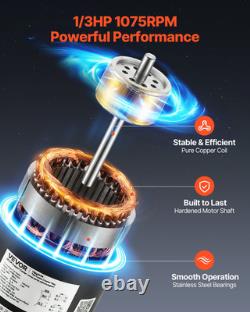

This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47 cut-to-length wire for easier wiring and quick installation. Includes Capacitor: Replacing the motor also requires replacing the capacitor. Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C.

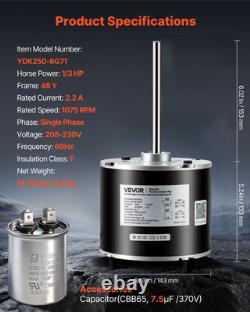

Solid Steel Housing Precision Bearing Color-coded Wires Explosion-Proof Capacitor Quiet Operation Easy Installation Frame: 48Y, Phase: Single Phase, Shaft Diameter: 0.5 in / 12.7 mm, Insulation Class: F, Rotation: CCW / CW, Product Size: 5.63 x 5.63 x 11.26 in / 143 x 143 x 286 mm, Shaft Length: 6.02 in / 153 mm, Horse Power: 1/3HP, Rated Speed: 1075RPM, Voltage: 208-230V, Item Model Number: YDK250-6G71, Frequency: 60Hz, Rated Current: 2.2A, Net Weight: 14.33 lbs / 6.5 kg.
