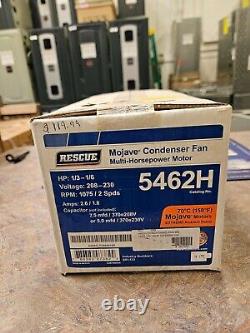

New US Motors Rescue 5462H K55ZZPSJ-1116 1/3-1/6HP 208-230V Condenser Fan Motors



RESCUE® Series Condenser Fan Motor. Diameter: 5-5/8; HP: 1/3-1/6; Volts: 208-230; F/L Amps: 2.60; Phase: 1; Hz: 60; Service Factor: 1.00; RPM: 1075; Speeds: 2; Rot. 1/2"; Shaft Length: 5"; Bearing Type: Ball; Wt.

14.0; NEMA Frame: 48; Type: PSC; Mounting: Stud; Std. All Angle; Enclosure: TEAO; Insulation Class: F; Thermal Protection: Auto; Ambient Operating Temp. (Celsius): 70; Agency Certification: UR/CSA; Capacitor to Match: Multiple. Ball bearing, all angle mounting. Residential and commercial condensing unit fan motors in extreme temperature locations.
