Condenser Fan Motor

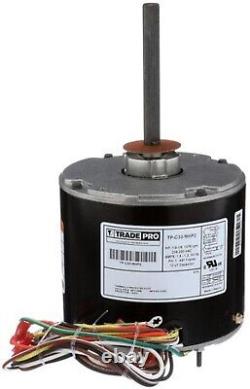

TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts


TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts
TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts
TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts
TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts
TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts

TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts    TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts
TRADEPRO TP-C33-MHP2 Condenser Fan Motor, 1/6 HP to 1/3 HP Motor, 208/230 Volts, 1.8 Amp, 1075 RPM, 2-Speed, 36 Lead Length, Single Phase, Automatic Protection, Reversible Rotation, Extended Mounting Bolts On Lead End of Motor, Include Rheem Side Shell Holes and Water Slingers, Totally Enclosed Air Over (TEAO) Motor Enclosure. TRADEPRO - motors are 100% functionally tested during manufacturing and then retested after final assembly for everything from input power to Hi-Pot and continuity testing. For those who prefer a fixed fractional design, TRADEPRO fixed fractional motors offers the same ideal combination of heavy duty construction and rugged durability you'd expect from the TRADEPRO brand. Universal fixed fractional condenser motor 208 - 230V Single phase 1.8 amp draw Speeds - 800, 950, 1075 48Y frame 5" keyed shaft 1/2" diameter 10MF 370 or 440V capacitor Side shell mount is pre-drilled to accept mount wings and resilient mount wings Dynamic self-aligning bearing with reversible direction.

Extended mounting bolts on lead end of motor. For shaft up application, simply reverse the direction of the bolts.

Include Rheem side shell holes and water slingers. Reversible bolts provide for easier installation for condenser motors. Full Load Amps: 1.8. Motor Enclosure: Totally Enclosed Air Over (TEAO). Motor HP: 1/6 HP to 1/3 HP.

Motor Type: PSC (Permanent Split Capacitor). Shaft Diameter: 0.5" (1/2"). You will receive your products as soon as possible. We get Excellent Ratings and other Shopping sites.
